When a net or bus passes a pin, this option allows you to make a connection to it.

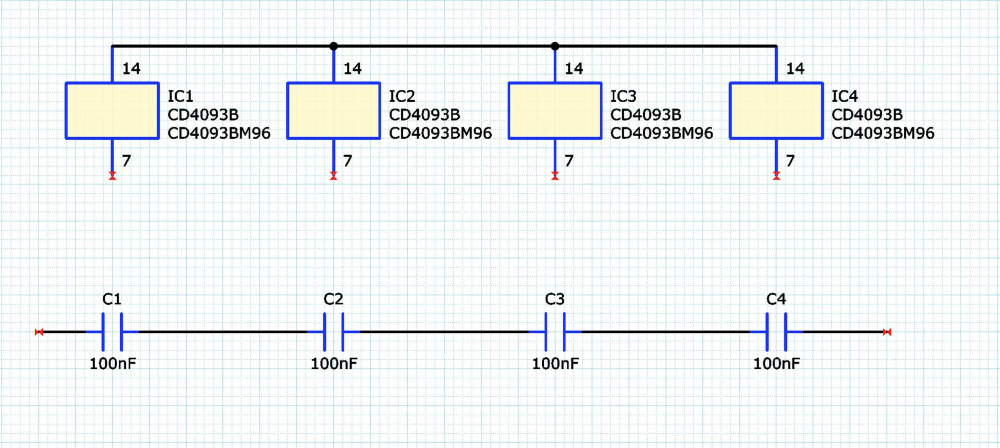

When Through Connection is set to ON in the Add Net Dialog
When drawing a net, pins that are in its path are connected to.
When Through Connection is set to OFF in the Add Net Dialog
When drawing a net, pins that are in its path are not connected to.
Note
