New in Version 2026.0: Pin Delay

Pin Delay is now supported to allow users to consider connection between the contact pad on the die and the solder pad in the package as a time-based constraint.

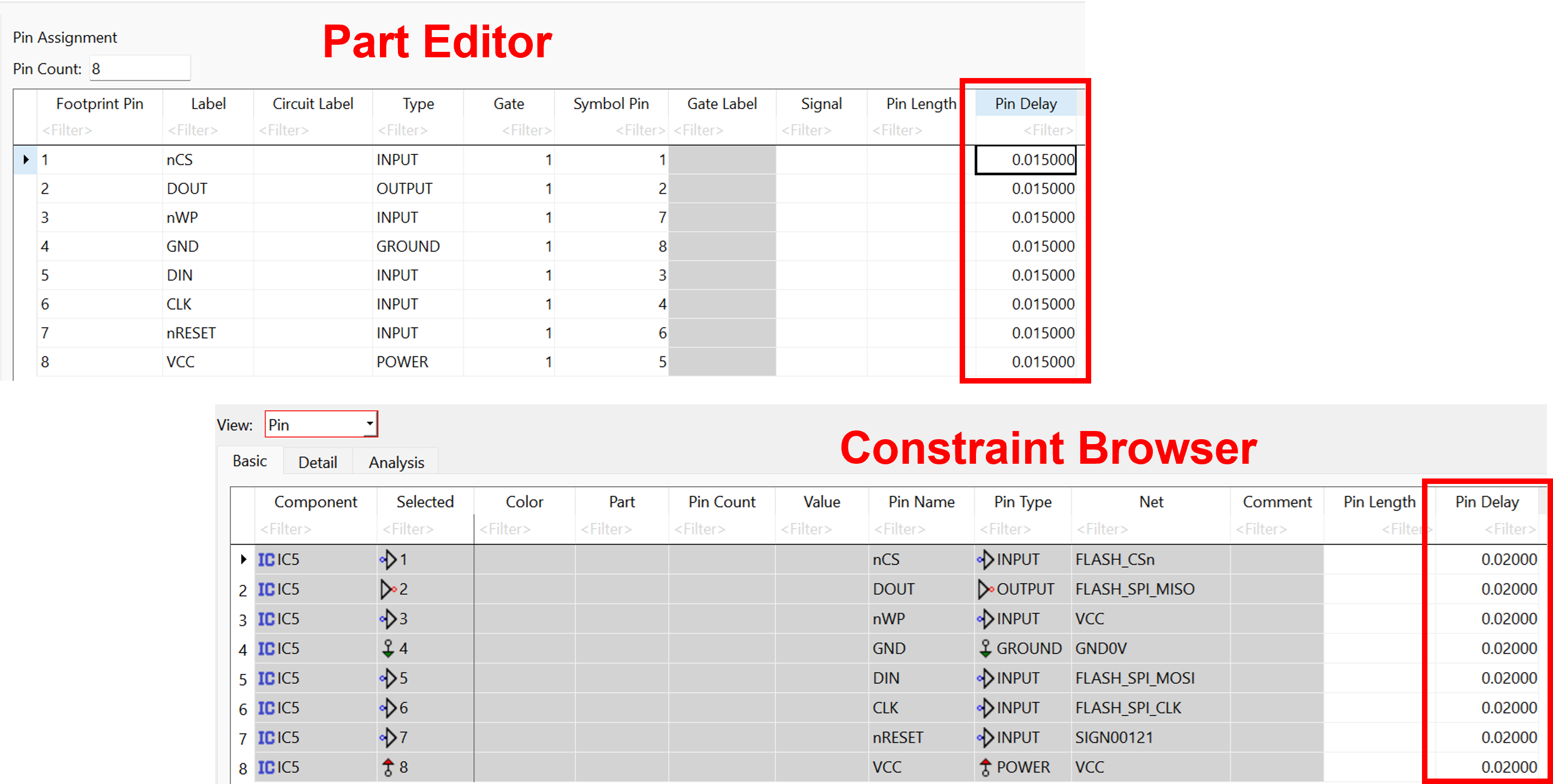

Pin Delay can be defined at part level in eCADSTAR Library Editor and component level in eCADSTAR PCB Editor.

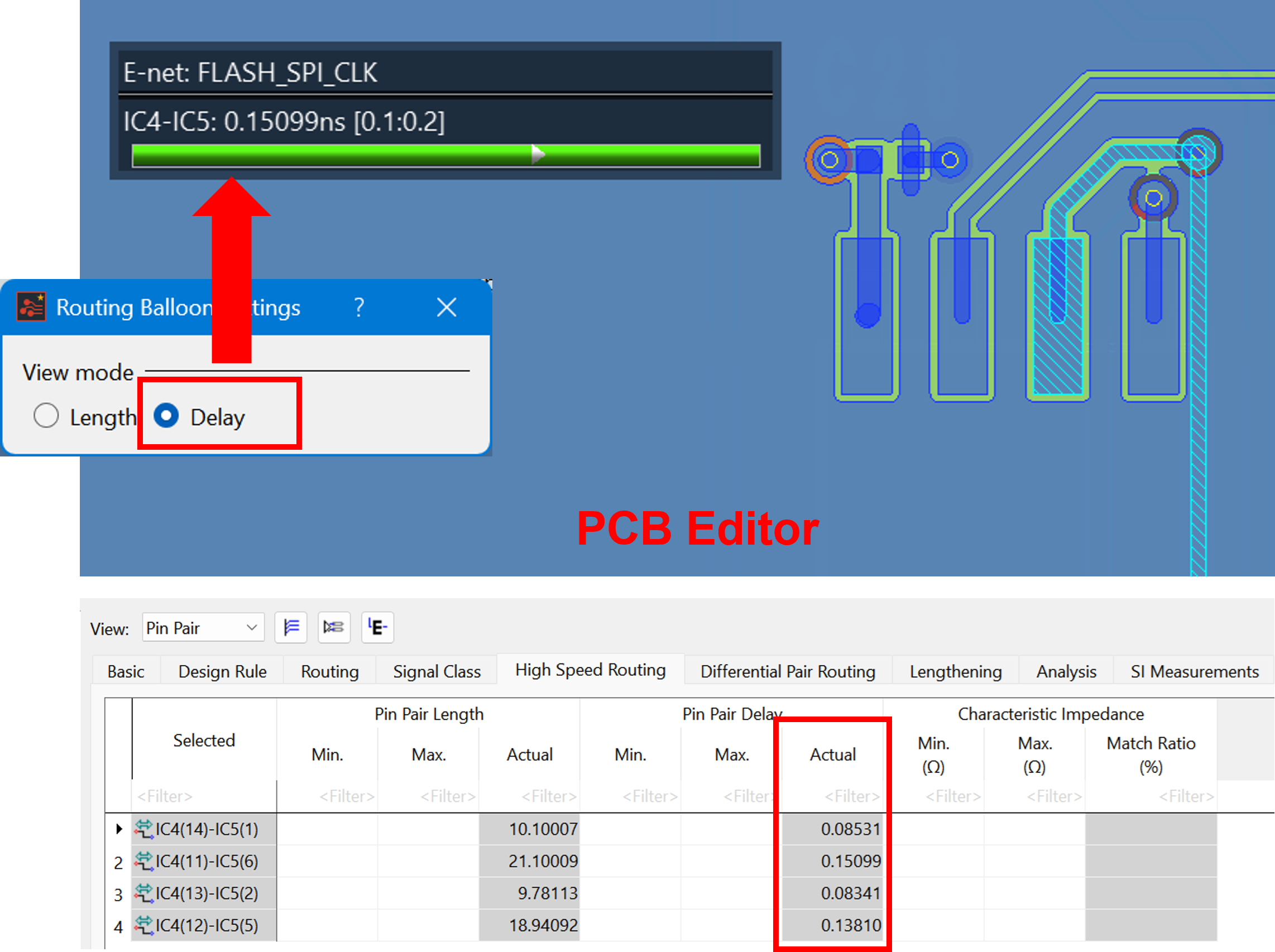

Routing tools consider Pin Delay as a new constraint.
