Improved in Version 2025.0: Routing

Various Routing feature improvements are now available.



  • Routing features
  • Starting width is now displayed before starting routing.

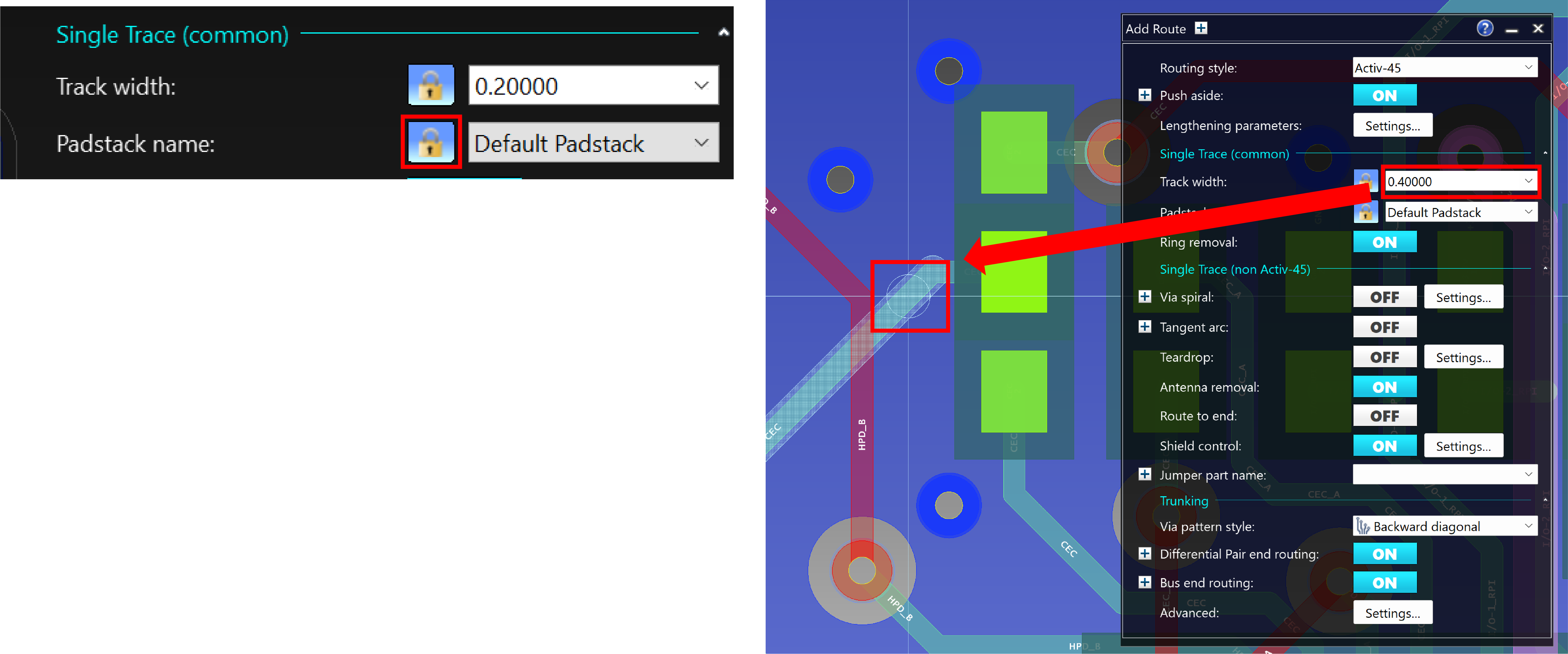

  • Padstack can now be locked/unlocked as well as Track width.



  • Object balloon

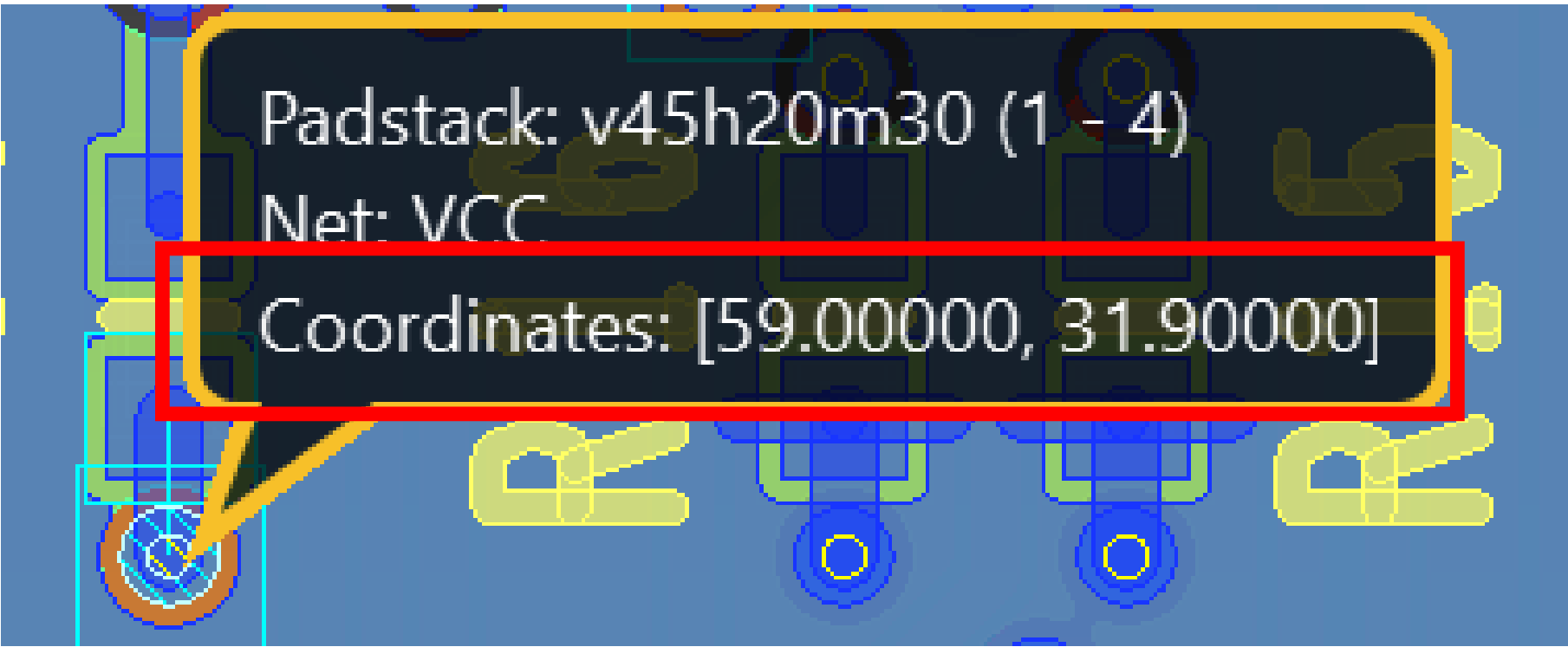

  • Coordinate value for following objects are now displayed in the balloon
    • Pad
    • Padstack
    • Text
    • Symbol
    • Hole
    • Dimension
    • Hierarchy connector
    • Board block
    • VBP

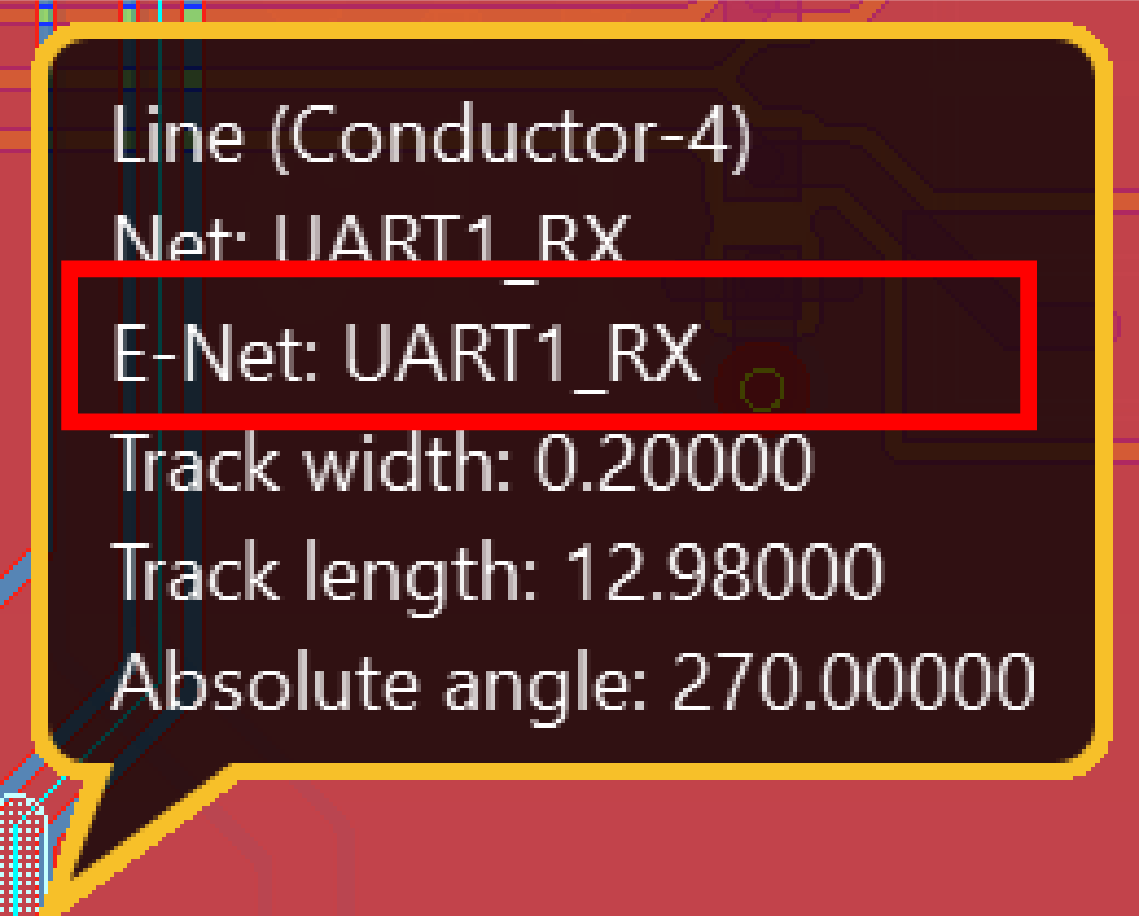

  • E-Net is now displayed in the baloon
