Improved in Version 2025.0: PCB various

A list of general improvements made in the eCADSTAR PCB Editor application for 2025. These are:

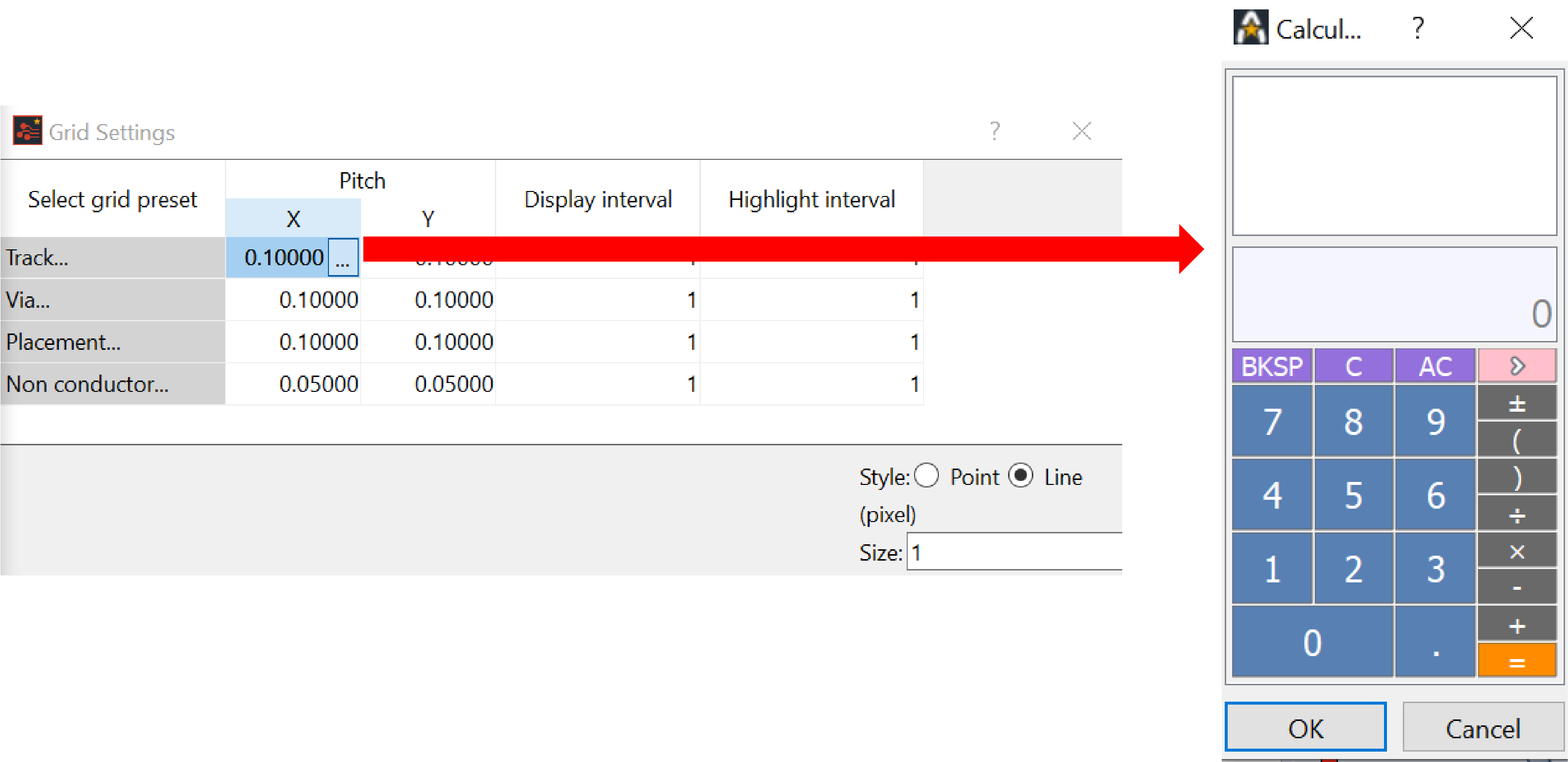

• Calculator dialog for Grid Settings

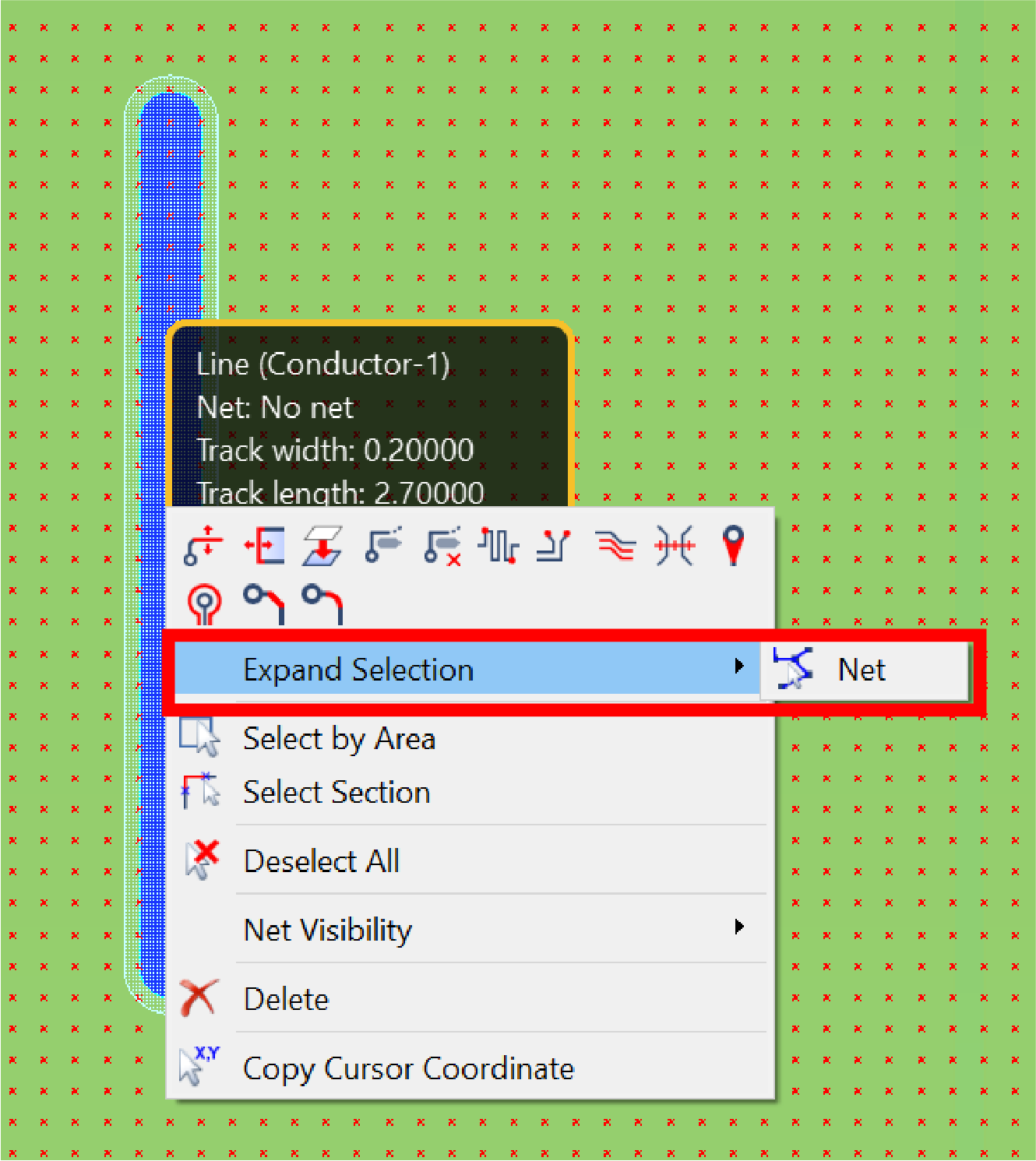

• Selection of no net items
  All the conductive items without net can now be easily selected.



• Photo output
• Performance improved if many flash data exist
• Split cutout
  Process is now improved when copper has long thin cutout, because there was a case to fail Phot output with such designs.

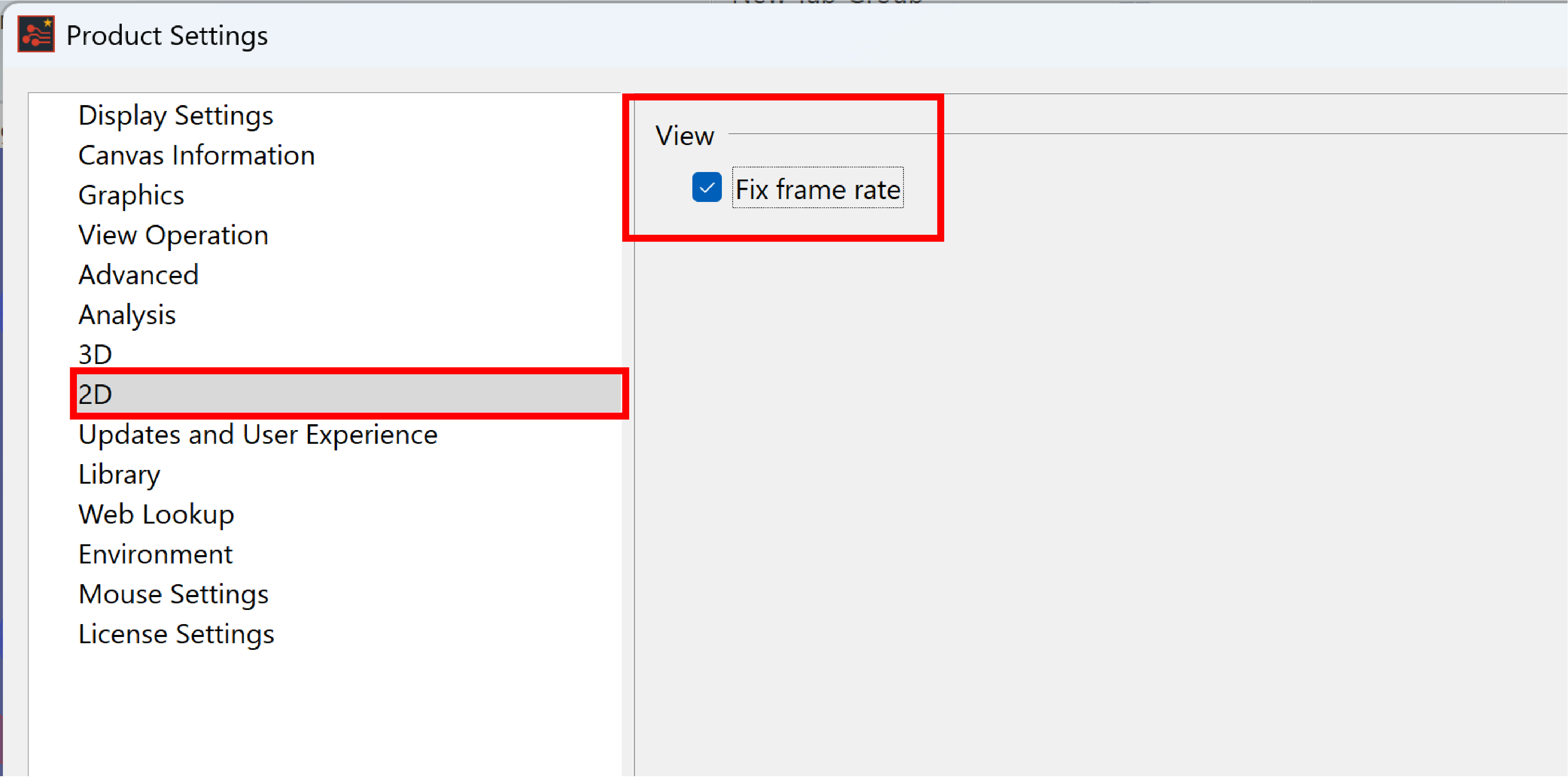

• 2D Fix frame rate
  Performance improvement made to draw 2D if Fix frame rate is enabled, when massive number of objects exist in the canvas.
