Improved in Version 2025.0: DRC

Various DRC improvements are now available.



• Multiple component areas is now supported
  Multiple areas where a component can belong is now reported if the component has violation to multiple areas. It used to show only one even if a component belongs to multiple areas.

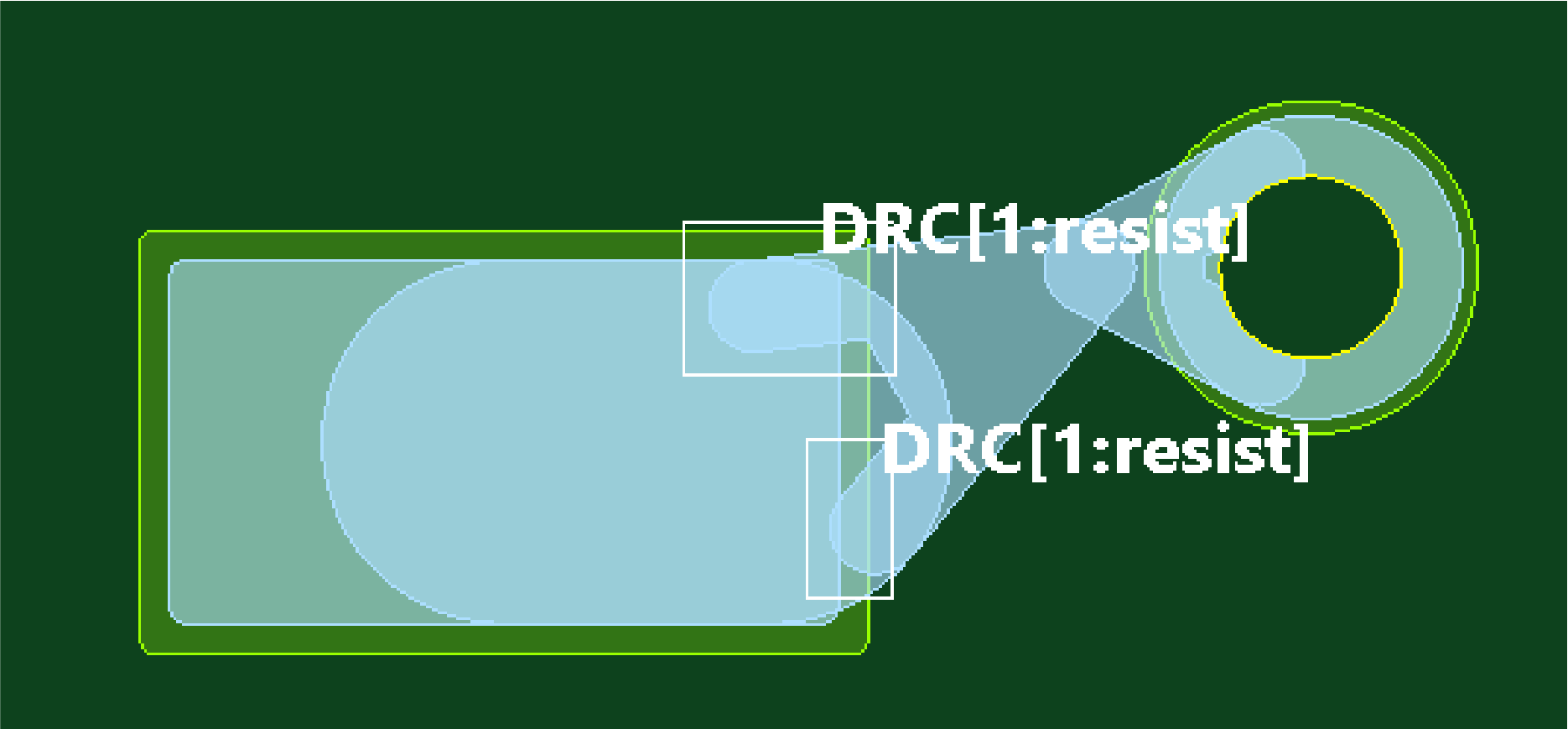

• Teardrop resist pseudo errors
  Pseudo error between pin resist and teardrop is now suppressed.




• Performance improvement
  Clearance / Antenna track check is performed.
