New in Version 2024.0: Etched Parts

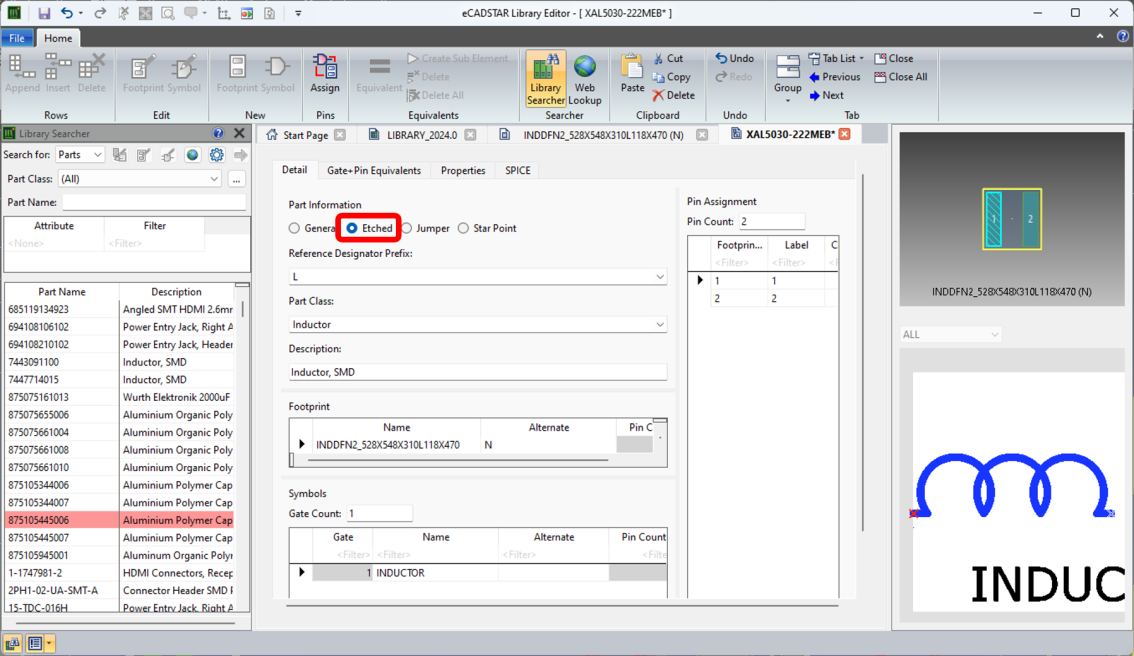

The new Etched part option within eCADSTAR Library Editor allows the creation of printed parts such as Planar Transformers and embedded resistors. The Part Editor and Footprint Editor both have new options to specify an etched part, which in turn allows for support of buried vias as padstacks within the component. These can be edited within the PCB editor.
