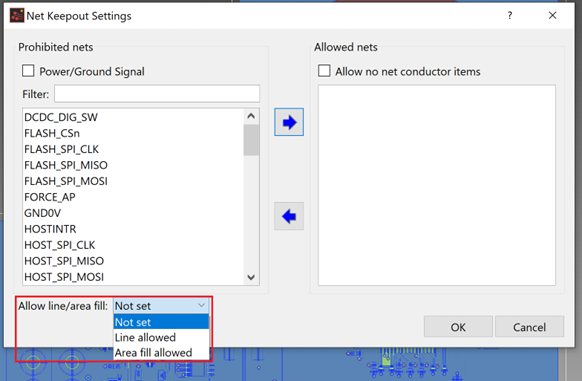

For an inhibit area, you can now specify an exception for individual tracks or poured copper. This is done in the Net Keepout Settings dialog. For example, a track inhibit area would allow an area of copper to be poured in the area, but would not allow tracks to route through it. Similarly, an area fill inhibit area would allow tracks to route through it, but would not allow an area of copper to be poured in the area.
Note
In Footprint Editor, you can also specify an exception for individual tracks or poured copper in an inhibit area. This is done in the Properties Panel, Allow line/area fill box.
