Task 7: Performing TDR Analysis
This topic describes how to perform TDR (Time Domain Reflectometry) analysis to review or evaluate signal transmission lines.
- In Constraint Browser, deselect the
Coupling for SI Analysis
button. - Select the differential pair signal "DDR_DQS0_N-DDR_DQS0_P", and click Utility > Extract Scenario.

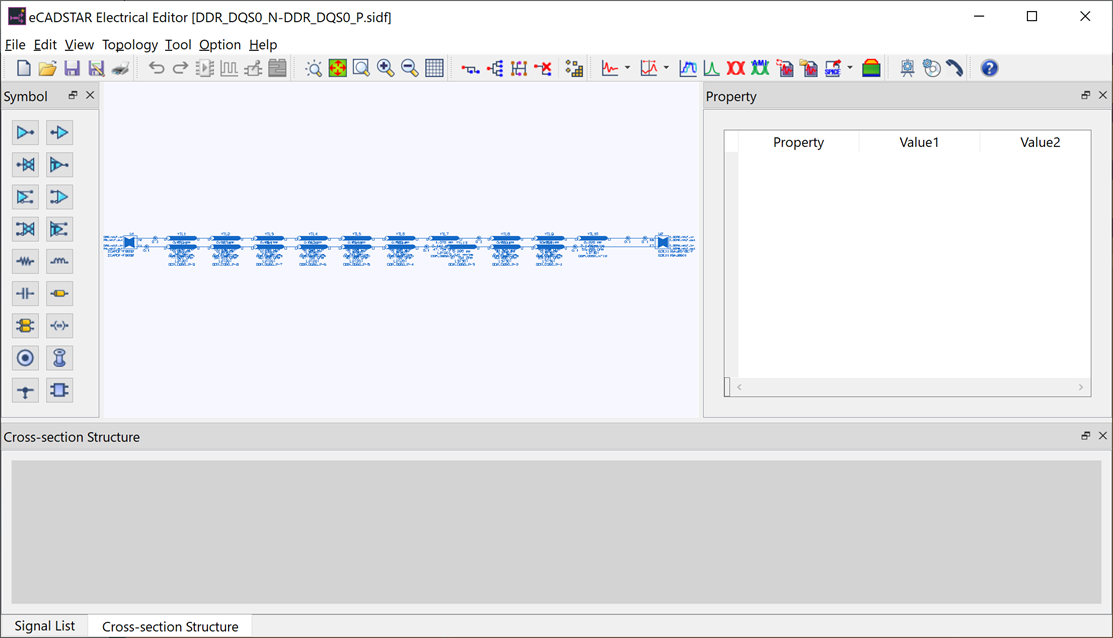

- On the toolbar in Electrical Editor, click
TDR

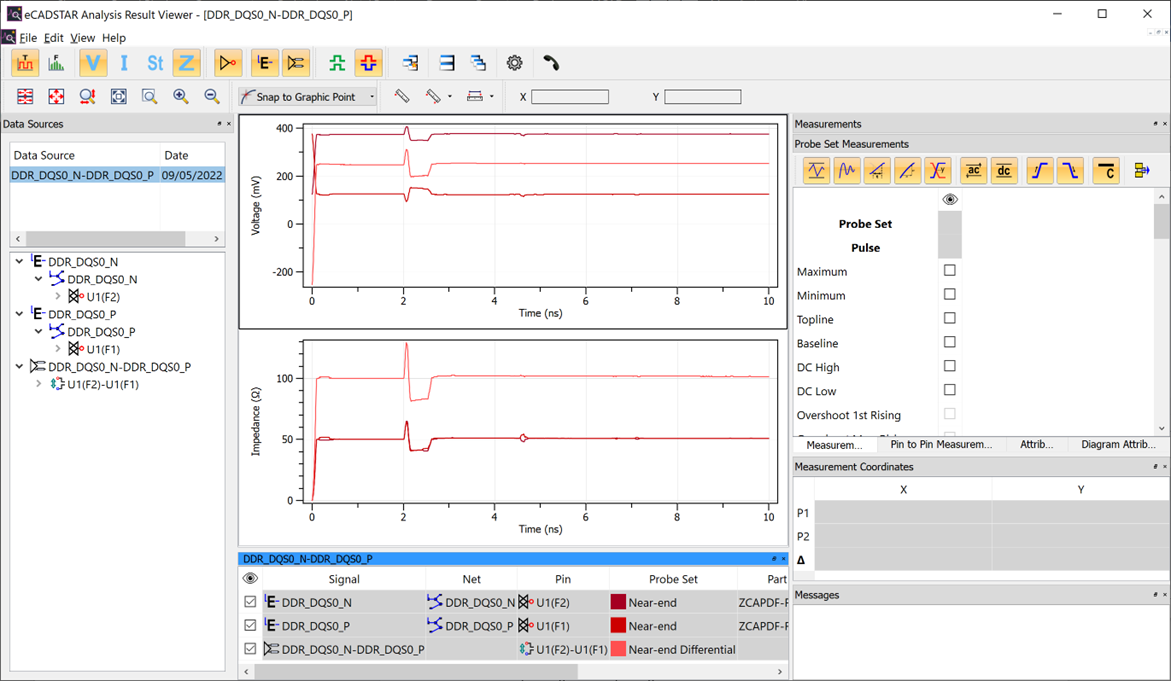

Analysis. Analysis Result Viewer is launched,
and displays the TDR analysis results.
- Select File > Exit to close Analysis Result Viewer.
Note

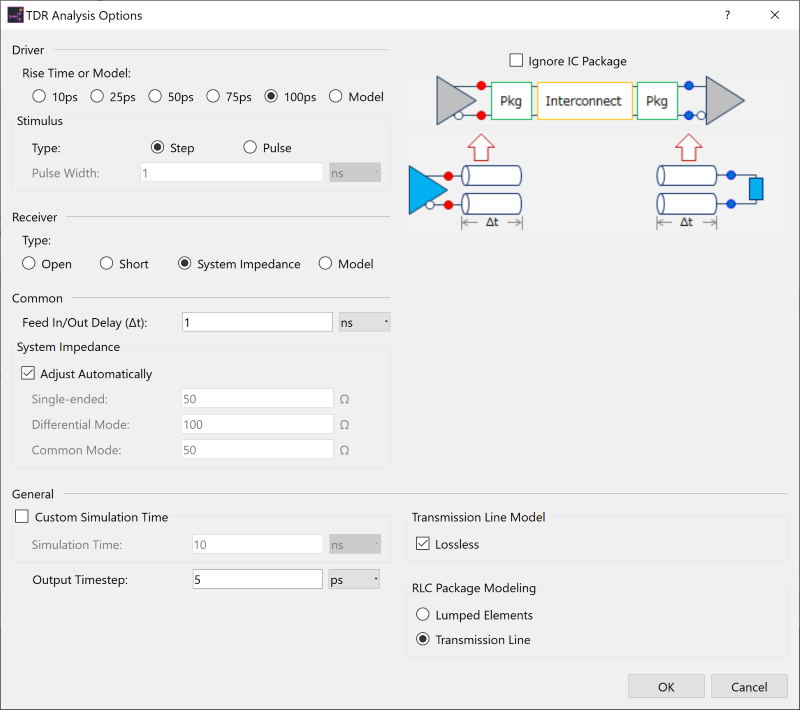

The analysis conditions for TDR analysis can be set in the TDR Analysis Options dialog. Launch this from the
TDR
Analysis pull-down menu on the toolbar.
The analysis conditions for TDR analysis can be set in the TDR Analysis Options dialog. Launch this from the
TDR
Analysis pull-down menu on the toolbar.
