Improved in Version 2022.0: Spice Controller (Support for Power Box gates)
Power Box gates are now fully supported for netlist output.

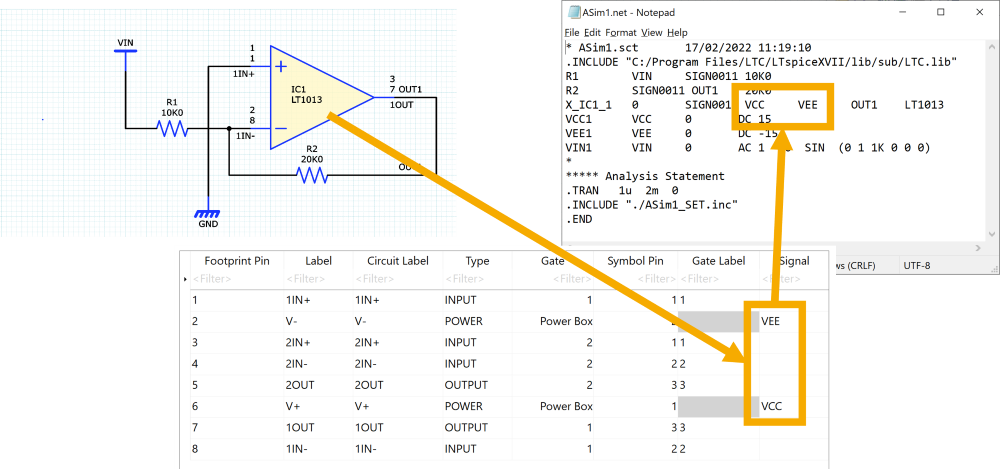

- If there are no power boxes in the circuit , then the library is referred to for power supply signals.

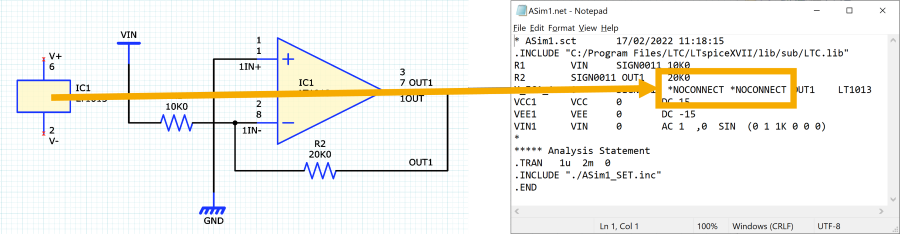

- If a power box is unconnected in the circuit, then it is considered unconnected in the SPICE netlist. The library is not referred to.

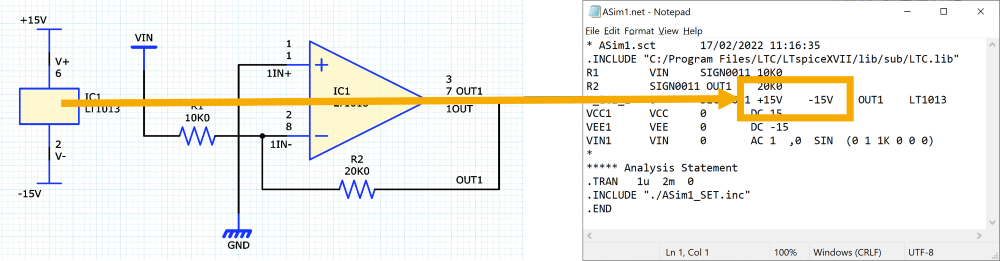

- If a power box is connected in the circuit, then it is considered connected with the attached signals in the SPICE netlist. The library is not referred to.
Note
The support for netlist output is now consistent with Forward Annotation to PCB Editor.
