Improved in Version 2022.0: IDF Parameters

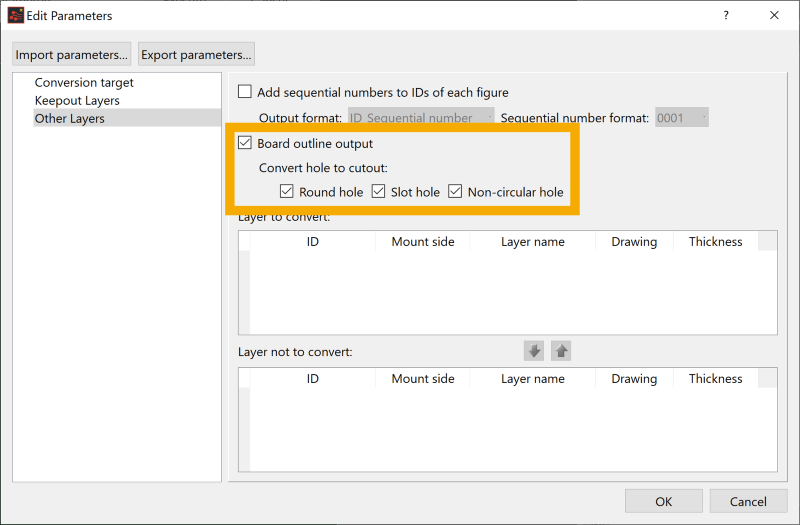

• The board outline can now be exported with the various hole types considered as cutouts in the board outline shape.

• IDF import now supports the import of the various hole types, and the plating attributes of holes. You can also define the import parameters to convert specific holes to padstacks.

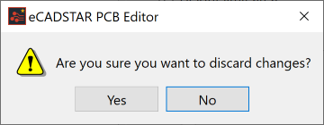

• When canceling the Import (IDF): Edit Parameters Dialog after importing an IDF Parameters XML file, you are prompted to confirm the operation.

• In the IDF Export command, you can now control the output of placement information for non-electrical components. An option is provided in the Edit Parameters dialog.
